Industrial Galvanized Steel Pallet

Categories: Steel Pallet

ADD TO FAVORITES REQUEST A QUOTE

DESCRIPTION

FAQ

The steel pallet consists of a supporting beam, upper panel and protecting steel angle.The supporting tube is of high-quality carbon steel tube 50×30×1.3mm. 4-way for forklift and 2-way for hand pallet truck.

C type steel of the panel makes the pallet skidproof and stronger. The safe edges are steel angle 30×30mm. This pallet has a high bearing ratio, up to 60 times of its own weight.

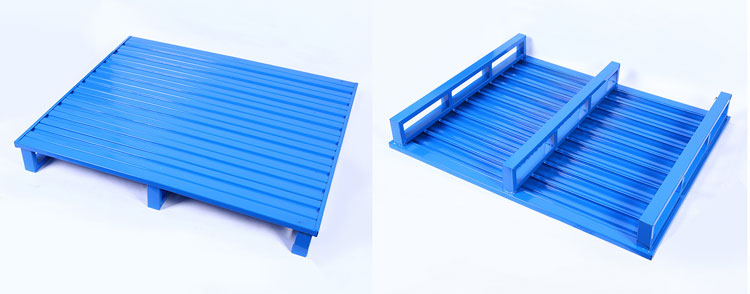

industrial galvanized steel pallet

Features and Advantages of Steel Pallet

1. The number of panels can be increased or decreased according to customer’s request.
2. The panel can be added to the bottom of the pallet according to actual loading products.
3. The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging.
4. The pallet can be used on selective rack, trough type rack and gravity type rack. Both forklifts and hand pallet truck are applicative.
5. To load scattered goods, pallet collar can be installed to the pallet.

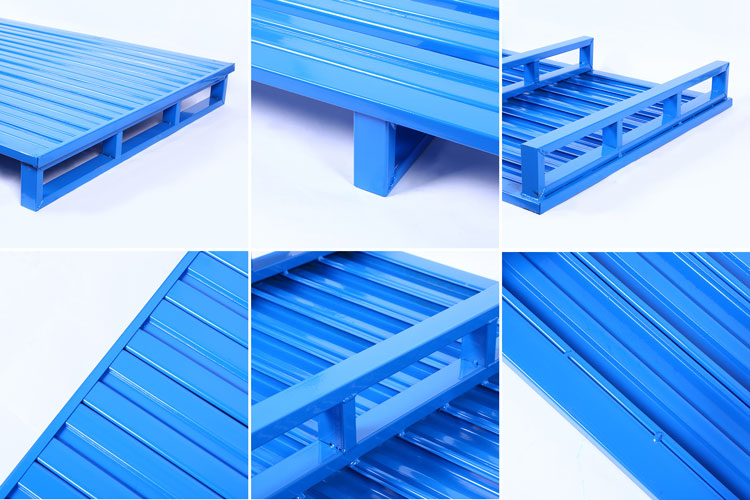

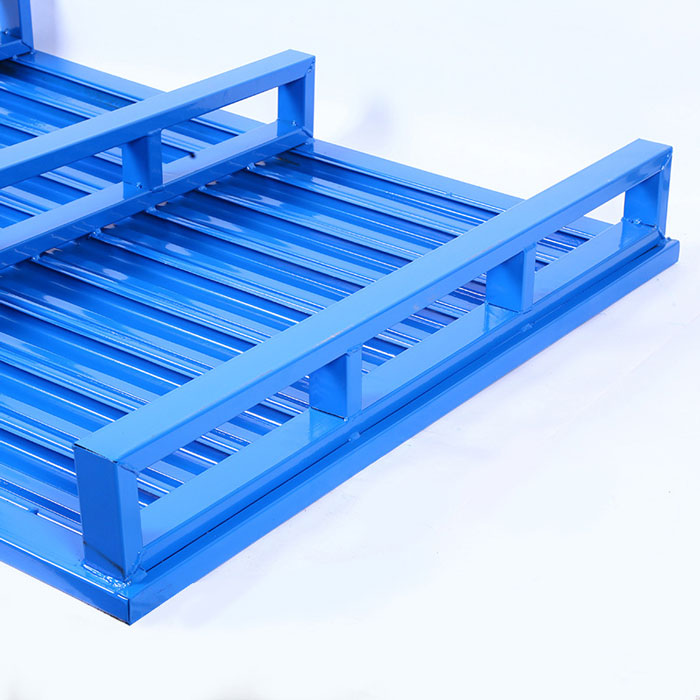

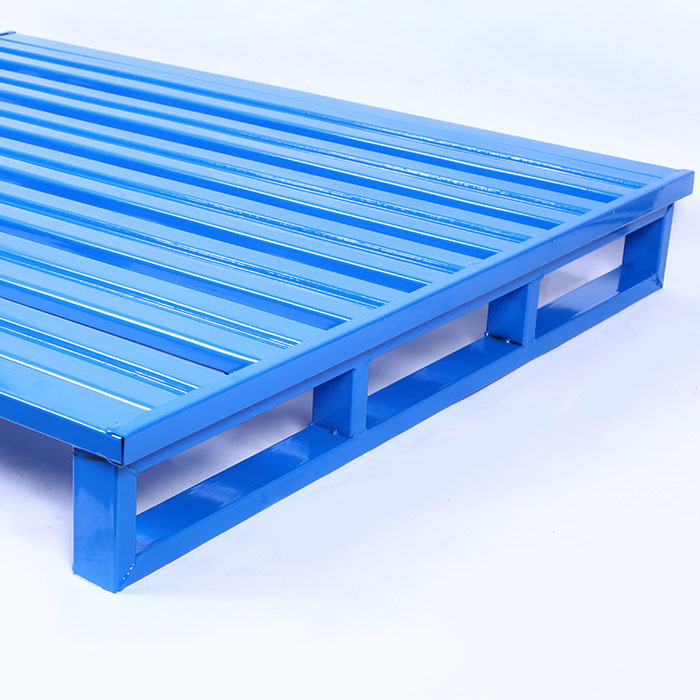

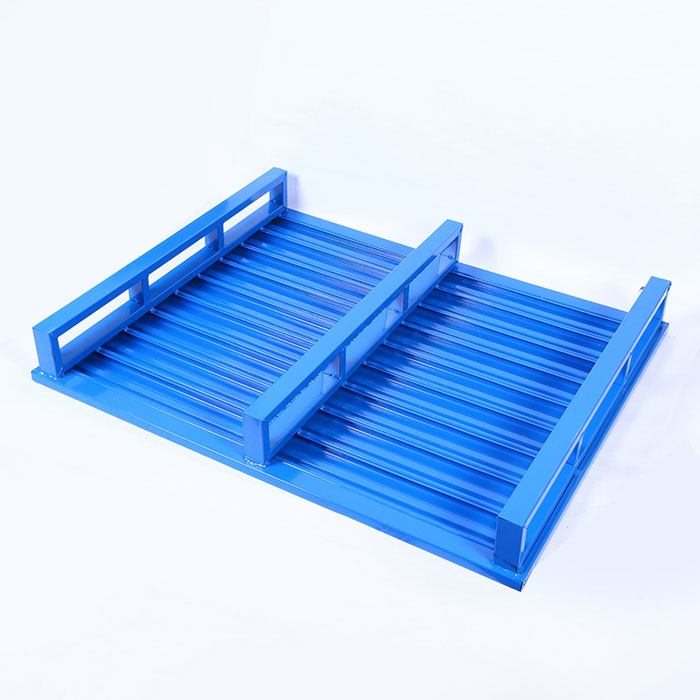

Details of Steel Pallet

Specifications of Steel Pallet

Dimensions (mm)			Weight	Structure	2-way/4-way	Surface	Capacity (t)
A	B	H	KG	Structure	2-way/4-way	Surface	Dynamic	Static
800	1200	157	27.95	Single-Side, Full	4-way	Powder Coating	2	4
1000	1200	157	31.27	Single-Side, Full	4-way	Powder Coating	2	4
1100	1100	157	30.28	Single-Side, Full	4-way	Powder Coating	2	4
800	1200	157	27.46	Single-Side, Full	4-way	ColdGalvanizing	2	4
1000	1200	157	30.27	Single-Side, Full	4-way	ColdGalvanizing	2	4
1100	1100	157	29.78	Single-Side, Full	4-way	ColdGalvanizing	2	4
800	1200	157	22.42	Single-Side,Half covering	4-way	Powder Coating	1.5	3
1000	1200	157	24.37	Single-Side,Half covering	4-way	Powder Coating	1.5	3
1100	1100	157	22.68	Single-Side,Half covering	4-way	Powder Coating	1.5	3
800	1200	157	22.04	Single-Side,Half covering	4-way	ColdGalvanizing	1.5	3
1000	1200	157	23.95	Single-Side,Half covering	4-way	ColdGalvanizing	1.5	3
1100	1100	157	22.28	Single-Side,Half covering	4-way	ColdGalvanizing	1.5	3
800	1200	184	33.55	Single-Side,One Side Full	4-way	Powder Coating	2	4
1000	1200	184	37.7	Single-Side,One Side Full	4-way	Powder Coating	2	4
1100	1100	184	36.95	Single-Side,One Side Full	4-way	Powder Coating	2	4
800	1200	184	32.99	Single-Side,One Side Full	4-way	ColdGalvanizing	2	4
1000	1200	184	37.07	Single-Side,One Side Full	4-way	ColdGalvanizing	2	4
1100	1100	184	36.31	Single-Side,One Side Full	4-way	ColdGalvanizing	2	4
800	1200	184	42.75	Single-Side, Full	4-way	ColdGalvanizing	2	4
1000	1200	184	49.28	Single-Side, Full	4-way	ColdGalvanizing	2	4
1100	1100	184	48.24	Single-Side, Full	4-way	ColdGalvanizing	2	4

Purchasing tips of Steel Pallet

Size purchase advice about steel pallet

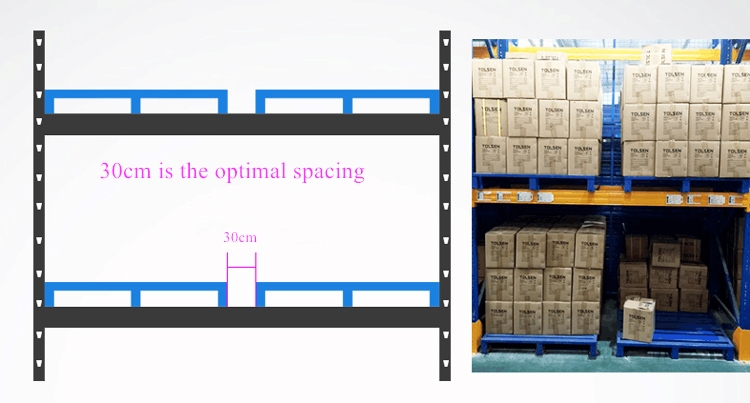

When you buy a steel pallet, the width of the warehouse shelf itself determines the size of the steel pallet! In order to facilitate the use and turnover of the forklift, it is recommended that the distance between each steel pallet is at least 30cm.

For example, if your shelf length(inner) is 270cm, then the 1.2-meter wide steel pallet is the best size. If your shelf length(inner) is 250cm, a 1.1m wide steel pallet is the best size for choice.

Do you offer customized products?

we do custom products and projects.

If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a team whomanufacturer.
I don' have drawing or picture available for the custom products, could you design it for me?

Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
