The galvanized stainless steel pallet consists of a supporting beam, upper panel and protecting steel angle. The supporting tube is of high-quality carbon steel tube 50×30×1.3mm. 4-way for forklift and 2-way for hand pallet truck.
C type steel of the panel makes the pallet skidproof and stronger. The safe edges are steel angle 30×30mm. This pallet has a high bearing ratio, up to 60 times of its own weight.
1. The number of panels can be increased or decreased according to customer’s request.
2. The panel can be added to the bottom of the pallet according to actual loading products.
3. The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging.
4. The pallet can be used on selective rack, trough type rack and gravity type rack. Both forklifts and hand pallet truck are applicative.
5. To load scattered goods, pallet collar can be installed to the pallet.
6. Customer’s logo can be added as required.

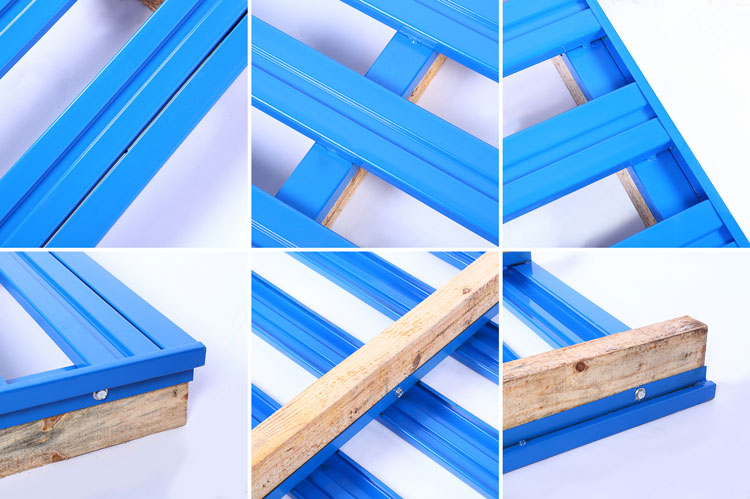

7. Both sides are processed with Angle wrapping edge, which enhances the surface effect of the pallet and reduces the risk of damage to the packaging.
8. In order to reduce the damage to the pallet caused by frequent forklift operation, rectangular tubes are arranged at both ends of the insertion direction to increase the service life.
9. The design of corrugated panel is conducive to improve the anti-skid effect and increase the load capacity of the panel but keep the weight light.
10. The 4-way insert design increases the space utilization and makes it more convenient on operation.
Dimensions (mm)
Weight
Structure
2-way/4-way
Surface
Capacity (t)
A
B
H
KG
Dynamic
Static
800
1200
157
27.95
Single-Side, Full
4-way
Powder Coating
2
4
1000
1200
157
31.27
Single-Side, Full
4-way
Powder Coating
2
4
1100
1100
157
30.28
Single-Side, Full
4-way
Powder Coating
2
4
800
1200
157
27.46
Single-Side, Full
4-way
Cold Galvanizing
2
4
1000
1200
157
30.27
Single-Side, Full
4-way
Cold Galvanizing
2
4
1100
1100
157
29.78
Single-Side, Full
4-way
Cold Galvanizing
2
4
800
1200
157
22.42
Single-Side, Halfcovering
4-way
Powder Coating
1.5
3
1000
1200
157
24.37
Single-Side, Halfcovering
4-way
Powder Coating
1.5
3
1100
1100
157
22.68
Single-Side, Halfcovering
4-way
Powder Coating
1.5
3
800
1200
157
22.04
Single-Side, Halfcovering
4-way
Cold Galvanizing
1.5
3
1000
1200
157
23.95
Single-Side, Halfcovering
4-way
Cold Galvanizing
1.5
3
1100
1100
157
22.28
Single-Side, Halfcovering
4-way
Cold Galvanizing
1.5
3
800
1200
184
33.55
Single-Side, OneSide Full
4-way
Powder Coating
2
4
1000
1200
184
37.7
Single-Side, OneSide Full
4-way
Powder Coating
2
4
1100
1100
184
36.95
Single-Side, OneSide Full
4-way
Powder Coating
2
4
800
1200
184
32.99
Single-Side, OneSide Full
4-way
Cold Galvanizing
2
4
1000
1200
184
37.07
Single-Side, OneSide Full
4-way
Cold Galvanizing
2
4
1100
1100
184
36.31
Single-Side, OneSide Full
4-way
Cold Galvanizing
2
4
800
1200
184
42.75
Single-Side, Full
4-way
Cold Galvanizing
2
4
1000
1200
184
49.28
Single-Side, Full
4-way
Cold Galvanizing
2
4
1100
1100
184
48.24
Single-Side, Full
4-way
Cold Galvanizing
2
4

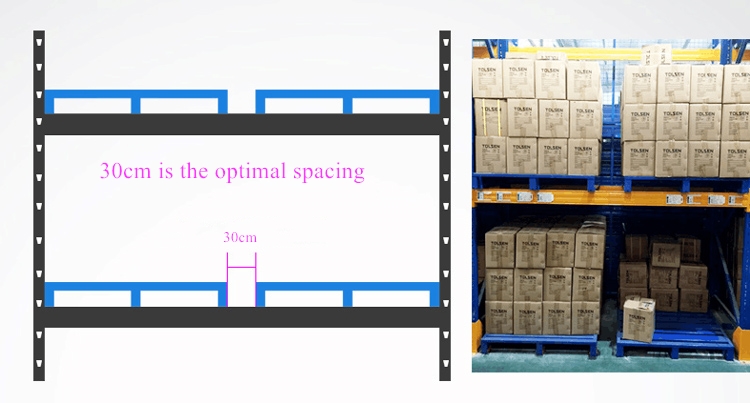

When you buy a steel pallet, the width of the warehouse shelf itself determines the size of the steel pallet! In order to facilitate the use and turnover of the forklift, it is recommended that the distance between each steel pallet is at least 30cm.
For example, if your shelf length(inner) is 270cm, then the 1.2-meter wide steel pallet is the best size. If your shelf length(inner) is 250cm, a 1.1m wide steel pallet is the best size for choice.
