Flared Channel - Wire Mesh Decking

Flared Channel - Wire Mesh Decking
Flared Channel - Wire Mesh Decking
Flared Channel - Wire Mesh Decking
Flared Channel - Wire Mesh Decking
Flared Channel - Wire Mesh Decking
Flared Channel - Wire Mesh DeckingFlared Channel - Wire Mesh DeckingFlared Channel - Wire Mesh Decking

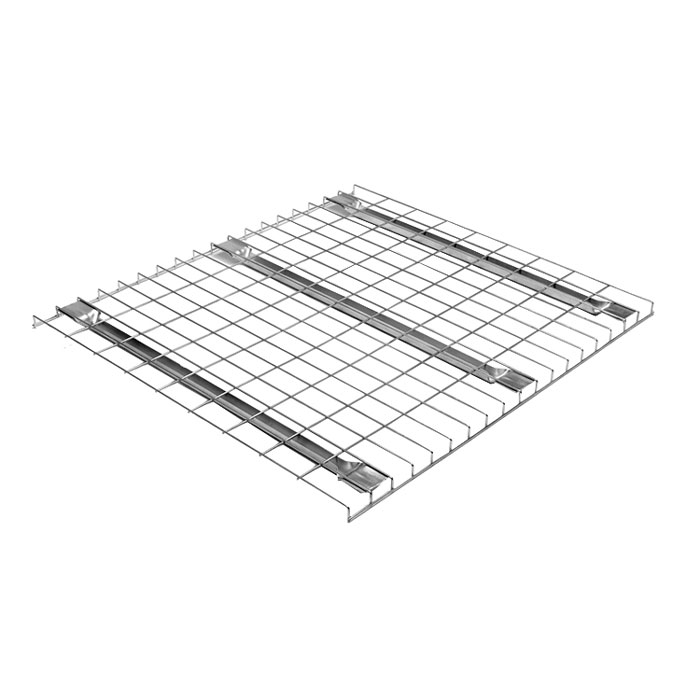

Flared Channel

Waterfall wire decking design with flared pallet rack support channels for accommodating box and structural type beams.


Wire mesh decks are more than 70percent open, allowing sprinkler systems to penetrate layers of shelving.


DESCRIPTION
FAQ

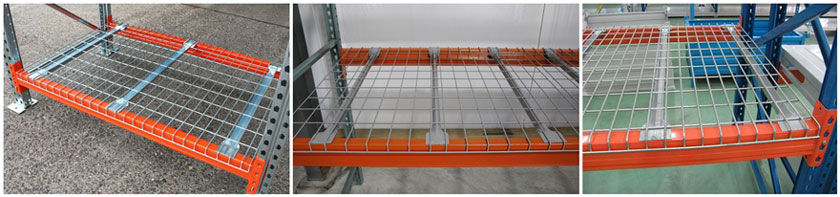

Wire mesh decking is a metal mesh grid that works with pallet rack to provide support, safety and other benefits for warehouse wire mesh storage shelf and products stored on the rack. Simple warehouse rack installation (they simply drop into place) and high visibility through all levels of wire mesh racks make wire mesh rack decking a favorite among warehouse managers worldwide.

Wire mesh decking

At its core, wire mesh decking for pallet racking improves security to workers by providing a barrier against product falling. Pallet rack wire mesh decking also improves air circulation and assist in fire safety by providing an elevated sprinkler system that can open access to lower levels in the event of a fire. Galvanized welded wire mesh panels are in lieu of plywood supports which is considered by many municipalities now.



Features of Wire Mesh Decking


-Wire mesh trailer decking is welded at contact points for sturdy, supportive surface.

-Easy to install, simply drops into place.

-Edges are curved to fit over ends of box or tube beams, preventing accidental removal.

-Available in a number of finishes including galvanized, plated and a variety of custom powder coated colors.

-Gives you the flexibility to store cartons, drums, and multiple pallet sizes.

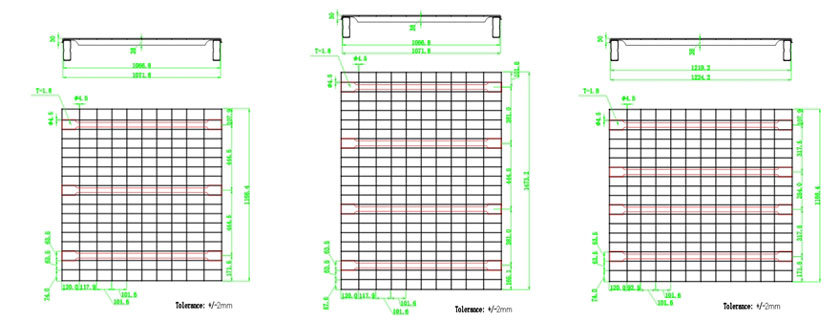

CAD of Wire Mesh Decking


Wire mesh decking CAD



Specifications of Wire Mesh Decking


Standard Wire Decking


Standard 50*100mm mesh aperture suits most carton and pallet storage applications.


Wire diameters 4.5mm, 5mm, 5.5mm, etc.
Mesh apertures 50*50mm, 50*100mm, 25*100mm, etc.
Channel thickness 1.5mm, 1.8mm, 2mm, etc.
Channel quantities 3pcs, 4pcs, 5pcs, etc.
Channel types Flared Channel.
Material Mild steel Q235.

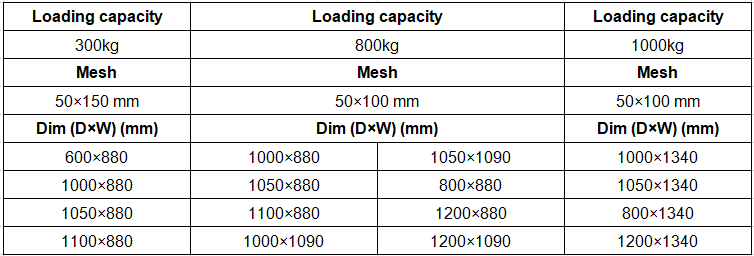

Euro Sizes


Loading capacity
 300kg
Loading capacity
 800kg
Loading capacity
 1000kg
Mesh 50×150 mm Mesh 50×100 mm Mesh 50×100 mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1050×1090 1000×1340
1000×880 1050×880 800×880 1050×1340
1050×880 1100×880 1200×880 800×1340
1100×880 1000×1090 1200×1090 1200×1340

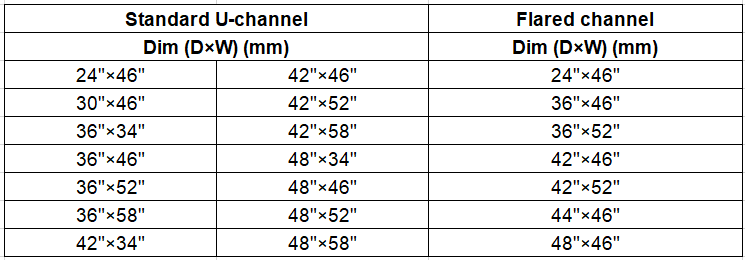

American Sizes


Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"

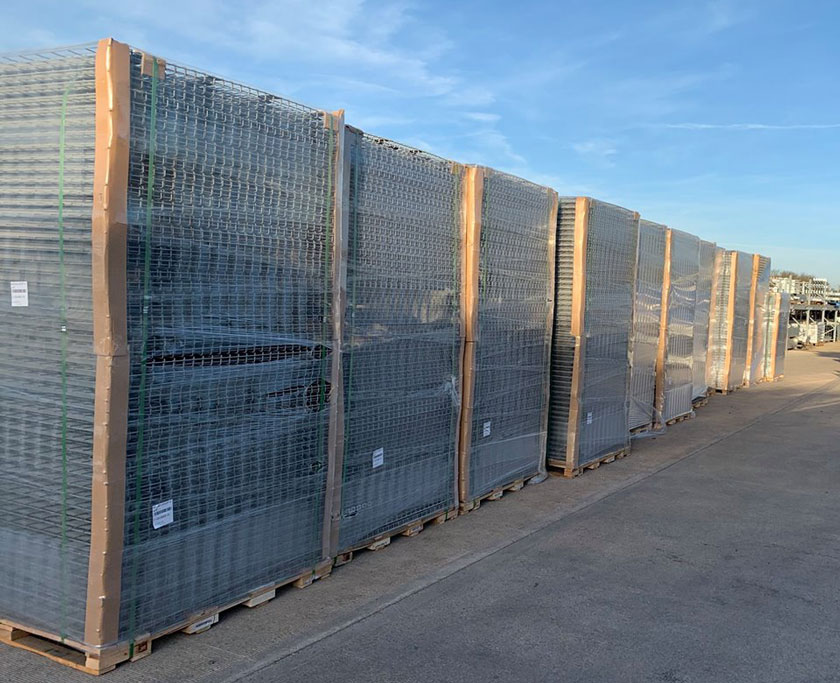

Packaging of Wire Mesh Decking


pallet racking wire mesh decks


Tell us what you need and we’ll make our wire rack decking to suit your specific application based on loading capacities, equipment used, load handling and other criteria.


    • Do you offer customized products?
      we do custom products and projects.

      If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a  team whomanufacturer.
    • I don' have drawing or picture available for the custom products, could you design it for me?
      Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
