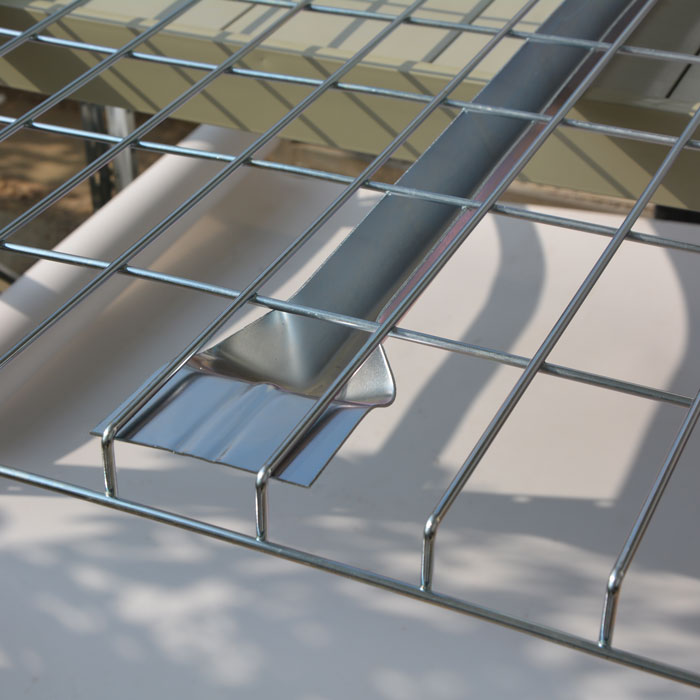

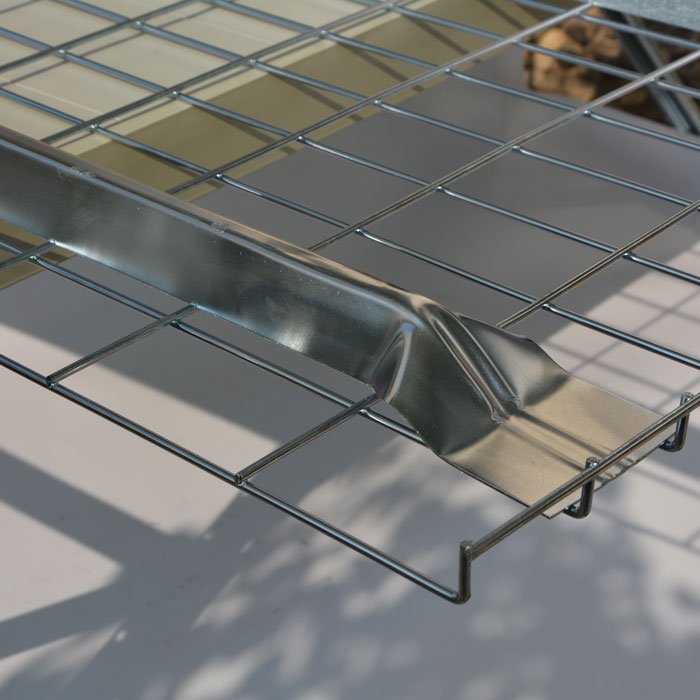

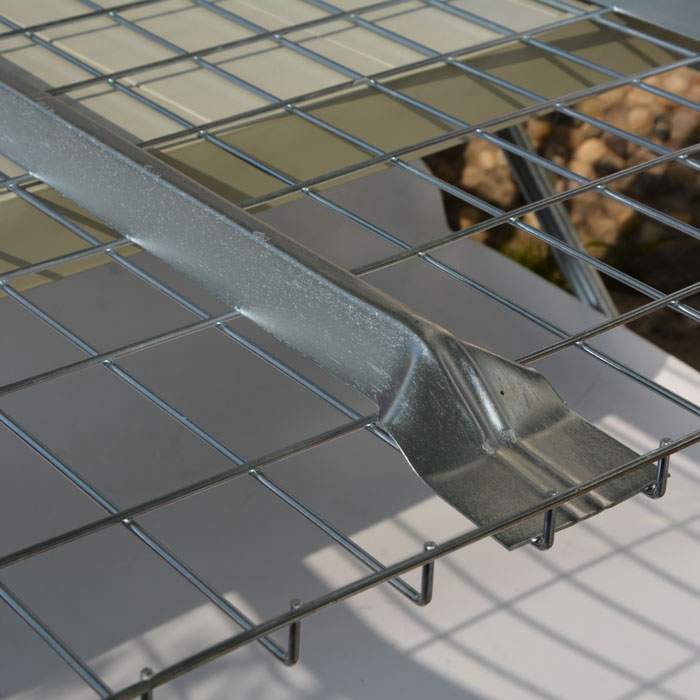

Flared Channel Galvanized Welded Wire Mesh Decks

Flared Channel Galvanized Welded Wire Mesh Decks
Flared Channel Galvanized Welded Wire Mesh Decks
Flared Channel Galvanized Welded Wire Mesh Decks
Flared Channel Galvanized Welded Wire Mesh Decks
Flared Channel Galvanized Welded Wire Mesh Decks
Flared Channel Galvanized Welded Wire Mesh Decks
Flared Channel Galvanized Welded Wire Mesh DecksFlared Channel Galvanized Welded Wire Mesh DecksFlared Channel Galvanized Welded Wire Mesh DecksFlared Channel Galvanized Welded Wire Mesh Decks


The surface treatment of heavy-duty welded wire mesh decks for shelf rack is usually galvanized.


It can be placed on various types of pallets or bulk cargo.


DESCRIPTION
FAQ

Raw materials of flared channel galvanized welded wire mesh decks are sprayed and welded by high-quality cold-drawn wire. The mesh is 50*50.


The bottom of the mesh is strengthened with reinforcing bars. The two sides of the mesh deck are bent and placed on the shelf beams to stabilize the goods to ensure the safety of the goods.


Generally, the load can reach 3T, and the surface treatment is galvanized and sprayed.


Its load-bearing capacity is much stronger than stainless steel pallet, the force is evener. It is more durable and beautiful, and it is convenient for fire control.

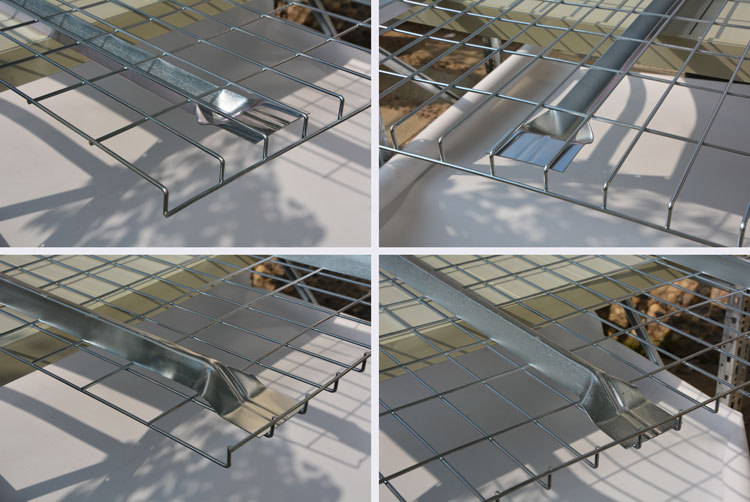

wire mesh decks

Galvanized welded wire mesh decking is a common product in warehousing nowadays. Its advantages are as follows:

1. Visualization is convenient for management.

2. The mesh-type laminates are firm and have a strong bearing capacity, which is convenient for the clean storage of bulk cargo.

3. Installation of mesh-type laminates can be used for storage of 1-3T cargo.

4. Mesh-type laminate installation does not require any tools, can be placed directly between the beams;

5. Manual storage, no need for pallet storage;

6. Mesh-type laminates are designed to prevent objects from falling from the sky;

7. Installation of mesh-type laminates can make the size of pallets diversified on the shelf;

8. It is made of strong wire by butt welding. The bottom is strengthened by U-shaped channel steel welding, and the structure is stronger;

9. Cooperate with heavy-duty shelves to save cost and place firmly.


wire mesh decking

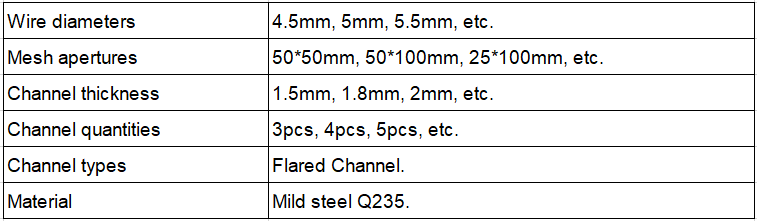

Specifications of Wire Mesh Decking


Standard Wire Mesh Decking


Standard 50*100mm mesh aperture suits most carton and pallet storage applications.


Wire diameters 4.5mm, 5mm, 5.5mm, etc.
Mesh apertures 50*50mm, 50*100mm, 25*100mm, etc.
Channel thickness 1.5mm, 1.8mm, 2mm, etc.
Channel quantities 3pcs, 4pcs, 5pcs, etc.
Channel types Flared Channel.
Material Mild steel Q235.


Euro Sizes


Loading capacity
 300kg
Loading capacity
 800kg
Loading capacity
 1000kg
Mesh 50×150 mm Mesh 50×100 mm Mesh 50×100 mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1050×1090 1000×1340
1000×880 1050×880 800×880 1050×1340
1050×880 1100×880 1200×880 800×1340
1100×880 1000×1090 1200×1090 1200×1340

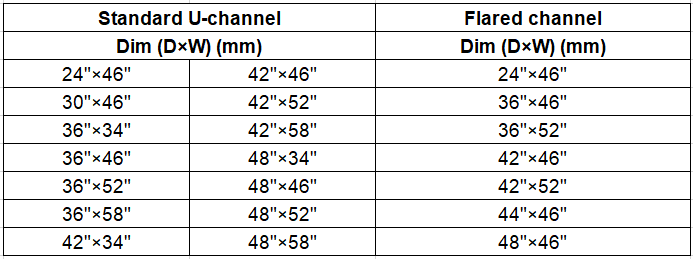

American Sizes


Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"

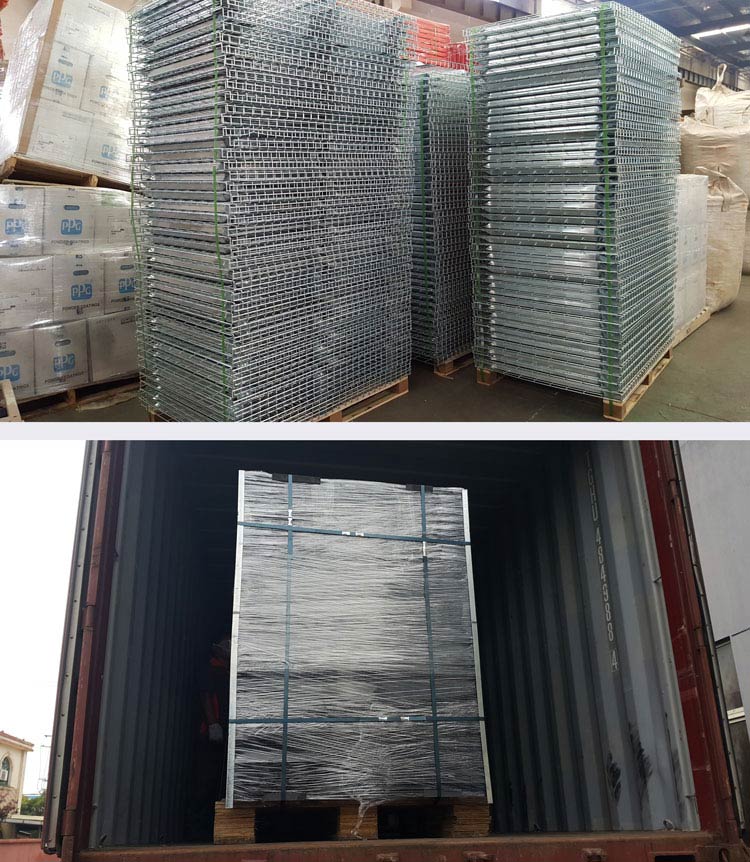

Packaging of Wire Mesh Decking


Packaging of wire mesh decking


Heavy-duty warehouse pallet rack plays an important role in modern logistics activities.

The modernization of warehouse management is directly related to the types and functions of shelves.

At present, galvanized welded wire mesh decks are widely used in warehouse pallet racking system, and the effect is very good, which is widely praised by customers.

    • Do you offer customized products?
      we do custom products and projects.

      If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a  team whomanufacturer.
    • I don' have drawing or picture available for the custom products, could you design it for me?
      Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
