U Channel - Wire Decking for Pallet Racking

Waterfall rack design with standard pallet rack supports channels wire to accommodate standard step beams.


Although not all states have adopted this as a requisite in fire safety, staying ahead of the curve will save you in the long run.


Wire decking may also provide leverage while negotiating your insurance rates!


DESCRIPTION
FAQ

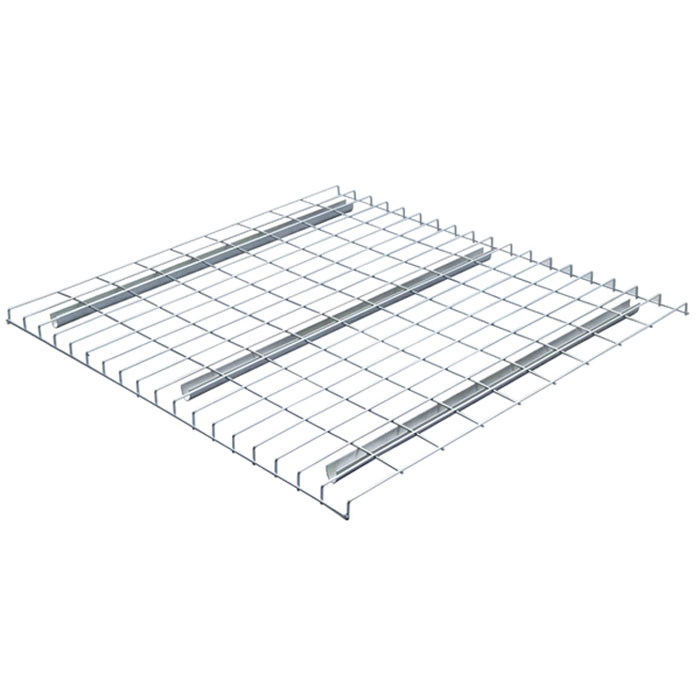

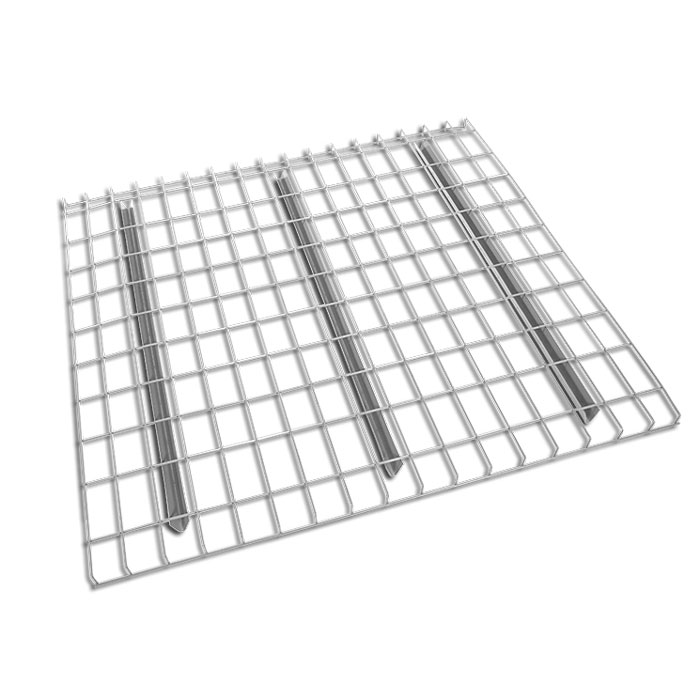

Galvanized welded wire mesh panel is a product that fits into wire mesh racks to provide pallet rack support, safety and other benefits to warehouse storage racks. Wire mesh decking for pallet racking is easy to install (they simply drop into place) and allow high visibility through all levels of heavy duty pallet rack shelving.

In addition to providing protection from falling inventory, wire mesh rack decking can improve air circulation and prevent dust build-up. Waterfall wire decking can also help increase overhead sprinkler effectiveness, and many local fire codes require them instead of particle board or plywood.

wire mesh decking for pallet racking

Features of Wire Mesh Decking

-Wire mesh decking is welded at contact points for sturdy, supportive surface
-Easy to install, simply drops into place
-Edges are curved to fit over ends of step beams, preventing accidental removal
-Available in a number of finishes including galvanized, plated and a variety of custom powder coated colors.
-Gives you the flexibility to store cartons, drums, and multiple pallet sizes.

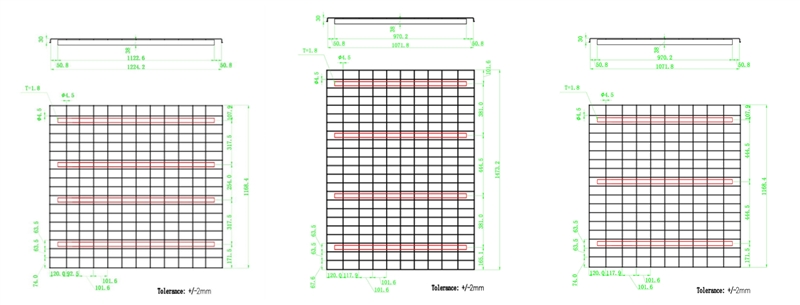

CAD of Wire Mesh Decking

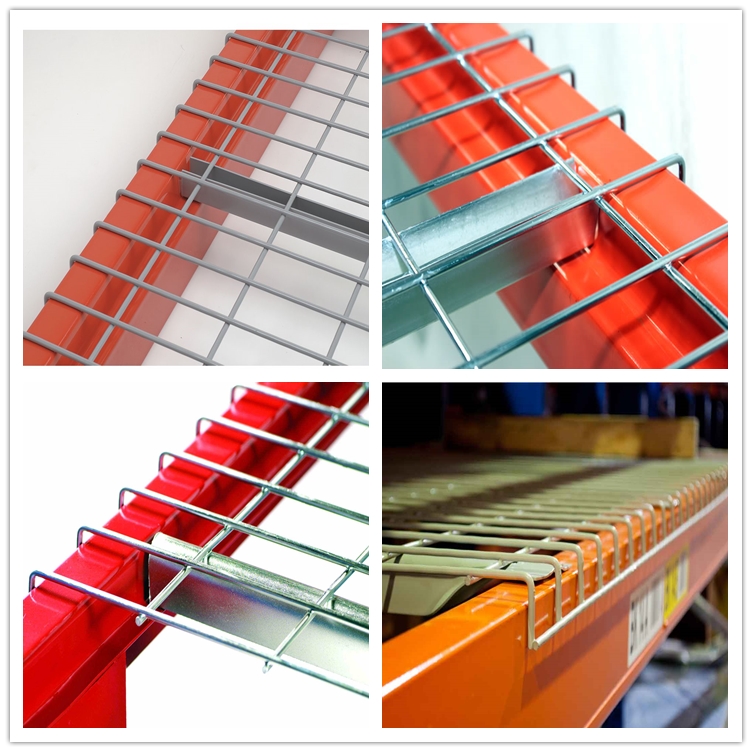

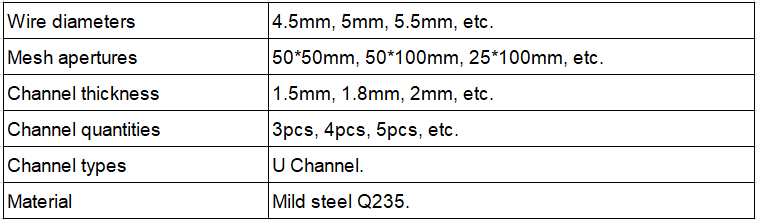

Details of Wire Mesh Decking


Wire diameters

4.5mm, 5mm, 5.5mm, etc.

Mesh apertures

50*50mm, 50*100mm, 25*100mm, etc.

Channel thickness

1.5mm, 1.8mm, 2mm, etc.

Channel quantities

3pcs, 4pcs, 5pcs, etc.

Channel types

U Channel.

Material

Mild steel Q235.


Euro Sizes


Loading capacity 300kg Loading capacity 800kg Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100 mm Mesh 50×100 mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1050×1090 1000×1340
1000×880 1050×880 800×880 1050×1340
1050×880 1100×880 1200×880 800×1340
1100×880 1000×1090 1200×1090 1200×1340

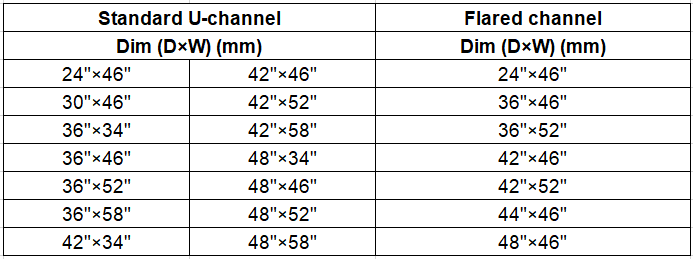

American Sizes


Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"

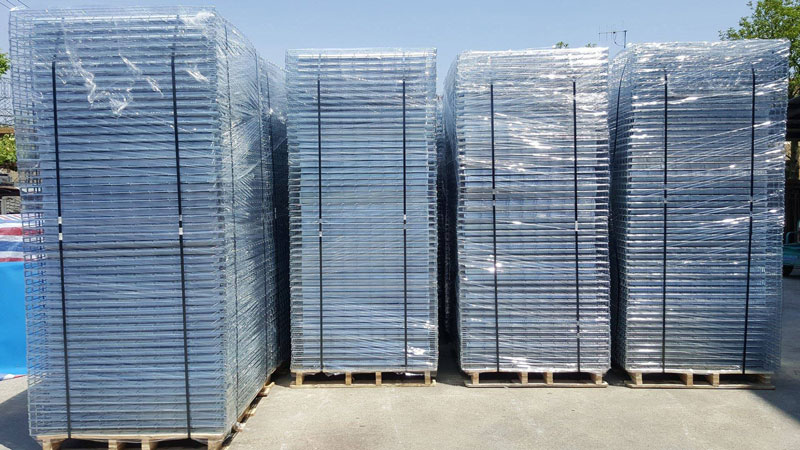

Packaging of Wire Mesh Decking


stainless steel wire fence


Tell us what you need and we’ll make our wire mesh rack decking to suit your specific application based on loading capacities, equipment used, load handling and other criteria.

    • Do you offer customized products?
      we do custom products and projects.

      If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a  team whomanufacturer.
    • I don' have drawing or picture available for the custom products, could you design it for me?
      Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
