Exterior Dimension | 1000x800x840mm |
Scale | Heavy Duty |
Loading Capacity | 500-1500kg |

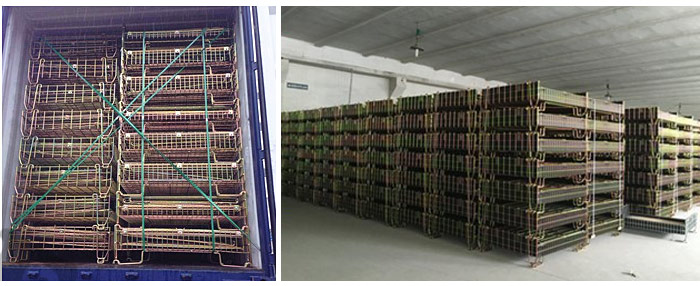

Loaded in 1x40'GP | 462 sets |

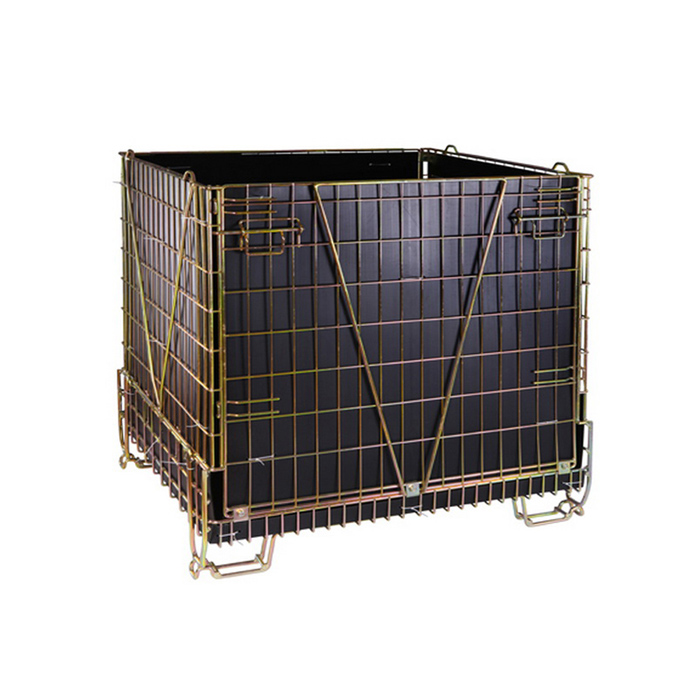

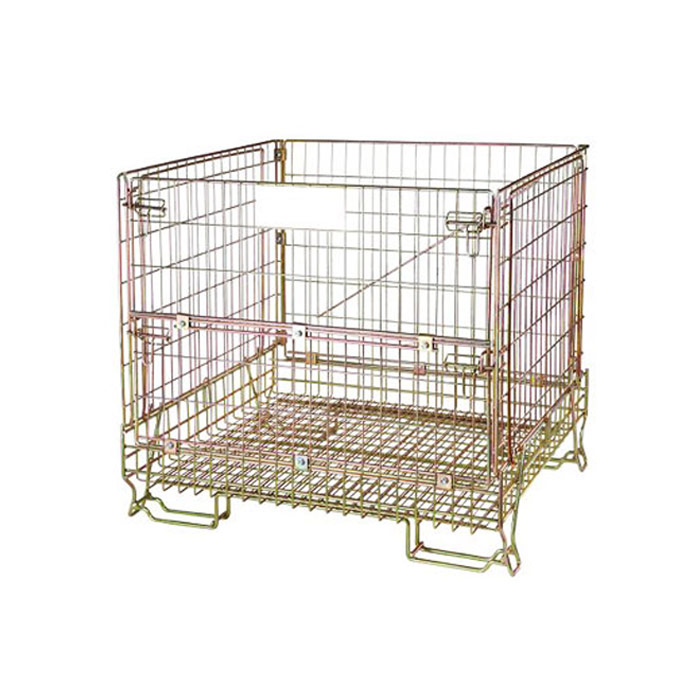

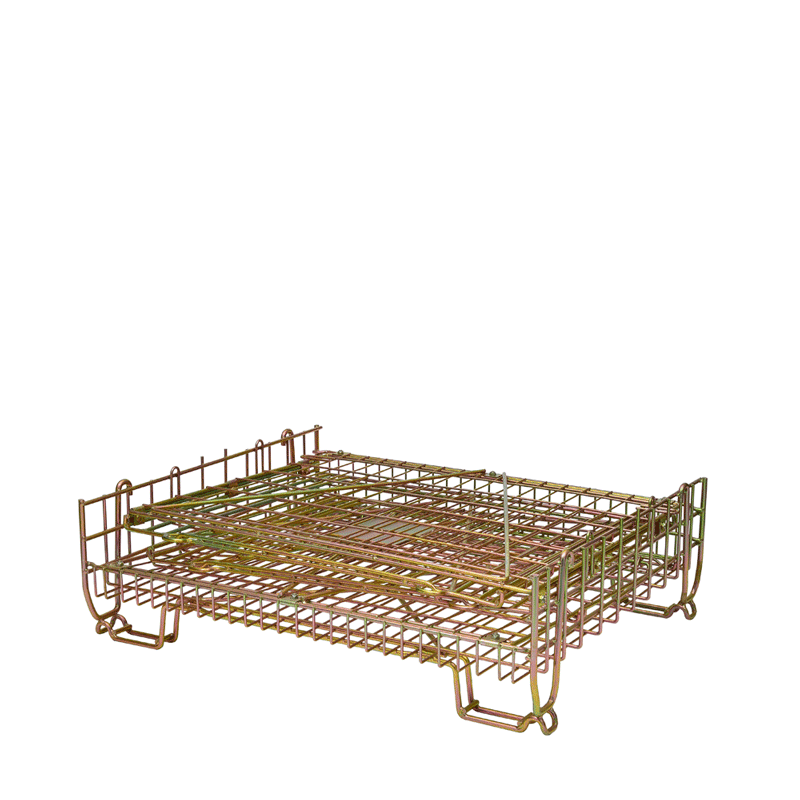

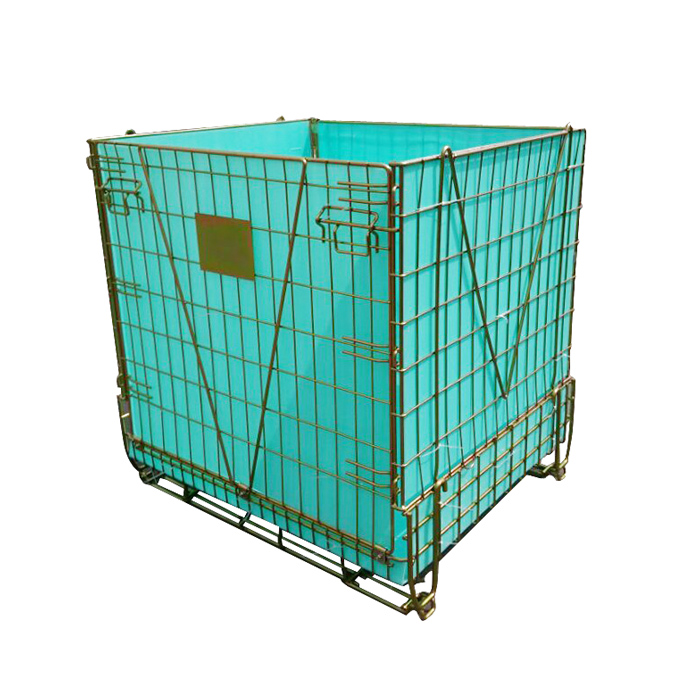

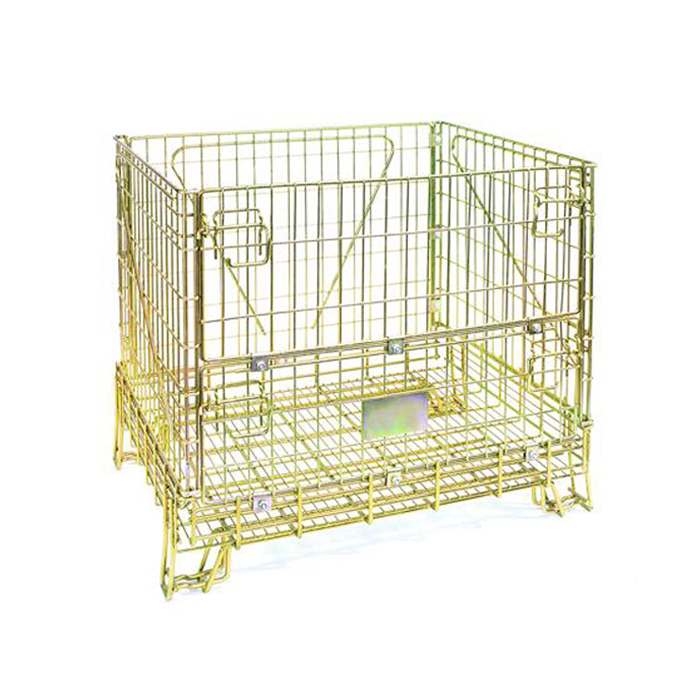

The stacking metal storage case combines the best of mesh design with the ultimate in stacking design. This design enables segregated storage. It also carries the advantage of very significant space saving.
Extremely durable and light-weight, this storage solution ensures that products are easily visible, while also being easy to retrieve and well-ventilated.
Model No. | Exterior Dimension | Wire Guage | Grid Size | Loading Capacity | Loaded in 1x40'GP |
|
LxWxH(mm) | mm | mm | kg | sets |
ACL-012 | 1200x920x1018 | ¢12-¢5.0 | 51x118 | 800 | 228 |
Material | Mild steel Q235 | ||||
Application Area | Warehouse, logistic, recycling, wine industry, etc. | ||||
Wine Storage | Load 400 bottles, type "Bordeaux" | ||||
Finish | Zinc/hot dip galvanized/powder coating | ||||
Remark | Costomized or OEM support |
Warehouse, logistic, recycling industry, temporary storage, transportation, sorting and storage of raw materials, semi-finished products and finished products.
