Heavy Duty Wire Mesh Container(ACL-001)

DESCRIPTION
Packaging & Shipping
FAQ

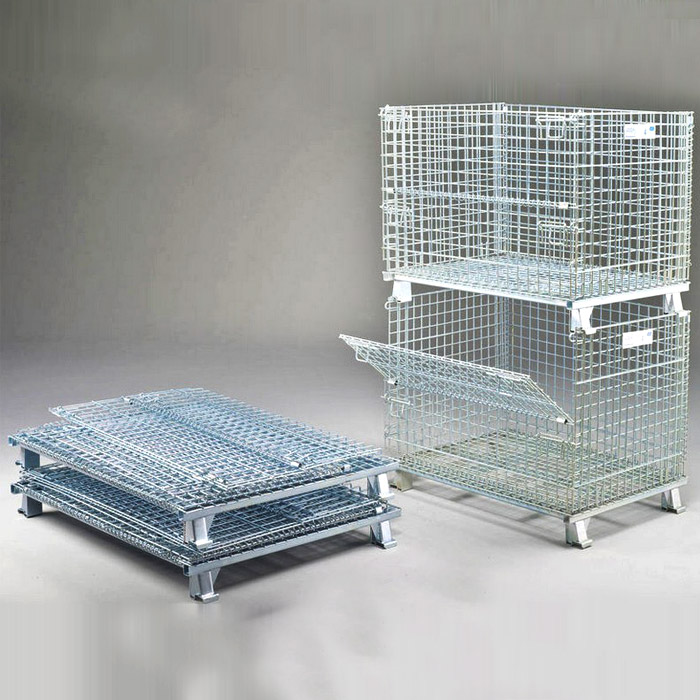

Wire mesh container, also known as metal wire containers, butterfly cages, clever cages, turnover cages, etc., is a standard logistics stainless steel mesh containers, which is mainly used for the wire basket storage solutions and mechanized turnover of heavier or large items. Collapsible storage containers with lids are especially suitable for the industry of automobiles, home appliances, mechanical hardware, etc. The stackable wire baskets for storage have been widely used in Europe, America, Japan, and Taiwan. Industrial stackable storage wire mesh container is designed and built for rugged, long service life, making them perfect for material handling. They come in a variety of sizes and capacities.


Flat clasp structure

Latch structure

Strengthening the connection strength of the foldable wire mesh container

Ensuring that the door can be opened when the containers are stacked so as to make it convenient to put in or tack out items

Limit wire structure

Square cup foot

Guaranteeing the stability during stacking

Special supporting leg structure for secure stacking

Optional designs & accessories

Dolly

Castors

Allows for easy movement of containers without the use of a forklift

A quick solution to mobilize containers without interfering stackability

Divider

Security lid

Front-to-back or left-to-right, for multiple products to be stored in one container

Secure for parts in storage or transit


Features and advantages of Wire Mesh Container:


1. It is made of high-quality steel, cold rolled and hardened, with high strength and large load carrying capacity.

2. Uniform specifications, fixed capacity, cargo storage at a glance, easy to store.

4. The surface is galvanized, beautiful and anti-oxidation, and has a long service life.

5. It adopts international standards and can be used with containers to effectively improve space utilization.

6. It can be stacked at 4 high to achieve three-dimensional storage.

7. Surface with environmental treatment, health immunization, turnover, storage, and recycling which do not pollute the environment.

8. Efficient operation can be carried out with equipment such as forklifts, ground cattle, elevators, and cranes.

9. The folding structure has low recycling cost and it is an alternative to wooden packaging crates.

10. Wheels can be installed at the bottom, making it easy to turn around inside the factory.


Specifications of Wire Mesh Container:


Model NO. Ext. Dim. Wire Guage Dim. of Grid Loading Capacity Loaded in 1x40GP
LxWxH (mm) mm mm kg sets
W1 1030x840x850 6 50x50 1300 470
L1 1030x840x850 6 50x100 800 470
W2 1230x1040x890 6.2 50x50 1700 320
L2 1230x1040x900 6.2 50x100 1200 320
S1 1230x1040x950 6.2 50x50 1700 320
W3 1030x840x500 6 50x50 800 470
Material Mild steel Q235
Optional accessories wheels, forklift guide, runner bar, security lid, divider, etc.
Application area warehouse, logistic, recycling, PET Preform, agricultural industry, etc.
Finish Zinc/hot dip galvanized/powder coating
Remark Customized & OEM support


CAD of Wire Mesh Container:


wire mesh container


Applications of Wire Mesh Container:


Warehouse, logistic, recycling industry, temporary storage, transportation, sorting and storage of raw materials, semi-finished products and finished products.


Packaging of Wire Mesh Container :


collapsible wire mesh container
    • Do you offer customized products?
      we do custom products and projects.

      If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a  team whomanufacturer.
    • I don' have drawing or picture available for the custom products, could you design it for me?
      Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
