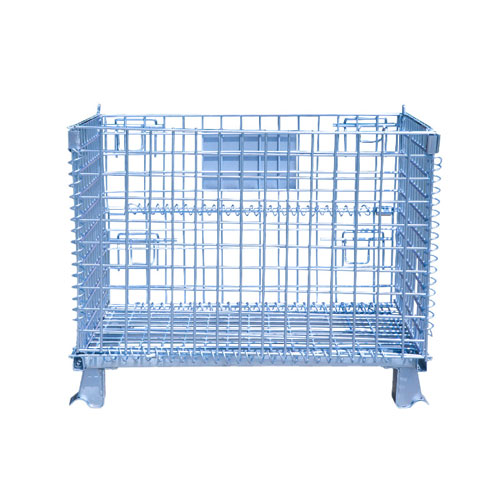

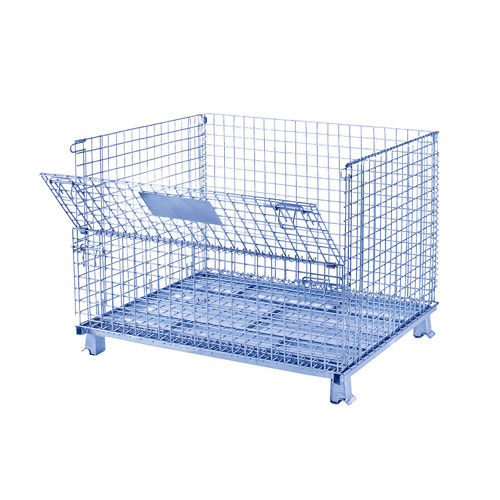

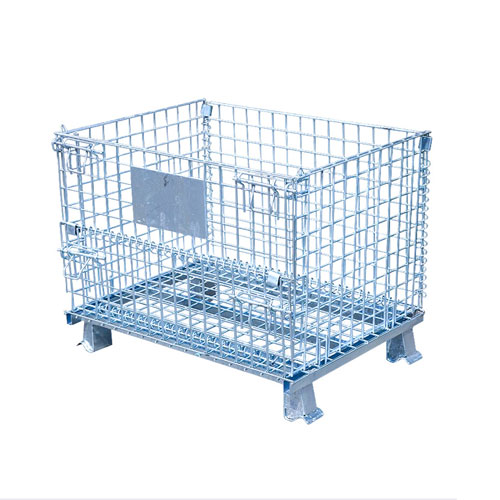

Heavy Duty Wire Mesh Container(ACL-002)

DESCRIPTION
Packaging & Shipping
FAQ

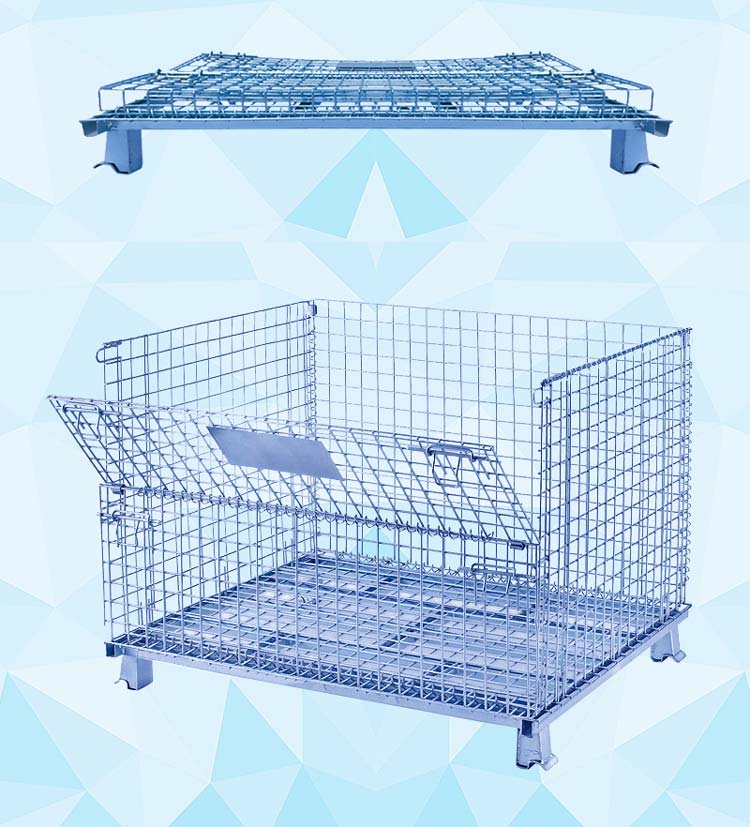

Collapsible wire mesh container is also called warehouse storage baskets and butterfly cages. Collapsible containers are a kind of logistics stainless steel wire mesh containers which is very important in warehouse storage solutions and transportation. It has the advantages of fixed storage capacity, neat storage, convenient storage, easy inventory check, etc., and also improves the effective utilization of storage space. The wire mesh basket storage can be folded freely. When wire mesh steel containers are not in use, it can be folded and stored so as to save storage space.


There are three types of heavy-duty storage containers commonly used: one is a wheeled industrial wire mesh containers for turnover, the other is a foot galvanized wire mesh container that can be piled up and also can be put on the warehouse rack and shelf, and the third one is wire mesh containers with wheels and feet can be used.


Flat clasp structure

Latch structure

Strengthening the connection strength of the foldable wire mesh container

Ensuring that the door can be opened when the containers are stacked so as to make it convenient to put in or tack out items

Limit wire structure

Square cup foot

Guaranteeing the stability during stacking

Special supporting leg structure for secure stacking

Optional designs & accessories

Dolly

Castors

Allows for easy movement of containers without the use of a forklift

A quick solution to mobilize containers without interfering stackability

Divider

Security lid

Front-to-back or left-to-right, for multiple products to be stored in one container

Secure for parts in storage or transit


Features and advantages of mesh storage container:


• Security lid for products in storage or transit is optional

• Clear view of the product inside the container

• Lightweight or heavyweight is optional

• Dividers for multiple products are optional

• Open wire mesh design

• Casters are optional

• Space Saver

• Long service life

• Fire-safe

• Recyclable

• Collapsible

• Stackable


Specifications of Wire Mesh Container:


Model No.

Exterior Dimension

Wire Guage

Grid Size

LoadingCapacity

Loaded in 1x40'GP

LxWxH(mm)

mm

mm

kg

sets

1200x1000x900

6.4

50x50

1300

154

Material

Mild steel Q235

Application Area

Warehouse, logistic, recycling industry

Finish

Zinc/hot dip galvanized/powder coating

Remark

Customized or OEM support


CAD of Wire Mesh Container:


wire mesh container


Applications of Wire Container:


Warehouse, logistic, recycling industry, temporary storage, transportation, sorting and storage of raw materials, semi-finished products and finished products.


Packaging of Wire Mesh Container :


collapsible wire mesh container
    • Do you offer customized products?
      we do custom products and projects.

      If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a  team whomanufacturer.
    • I don' have drawing or picture available for the custom products, could you design it for me?
      Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
