Heavy Duty Industrial Metal Iron Steel Pallet

The heavy duty industrial iron metal steel pallet consists of a supporting beam, upper panel and protecting steel angle.

Categories: Steel Pallet

ADD TO FAVORITES REQUEST A QUOTE

DESCRIPTION

FAQ

The supporting tube is of high-quality carbon steel tube 50×30×1.3mm. 4-way for forklift and 2-way for hand pallet truck. C type steel of the panel makes the pallet skidproof and stronger. The safe edges are steel angle 30×30mm. This pallet has a high bearing ratio, up to 60 times of its own weight.

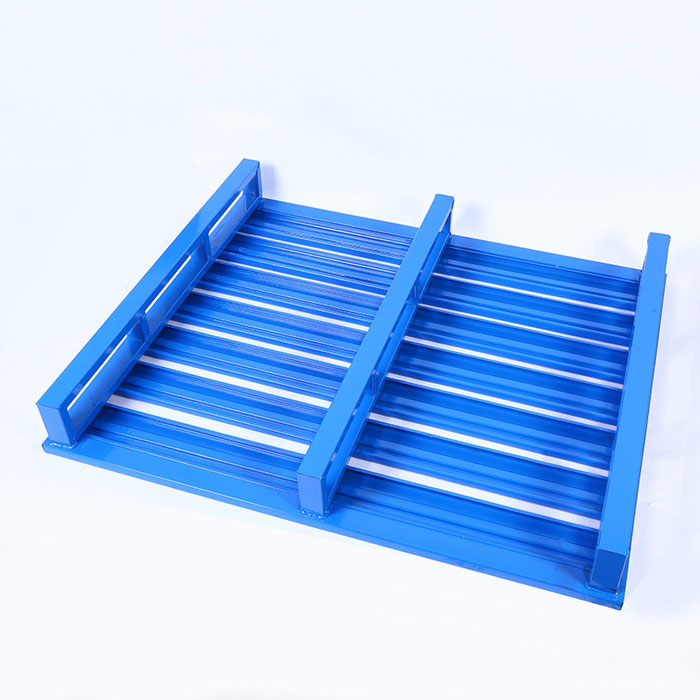

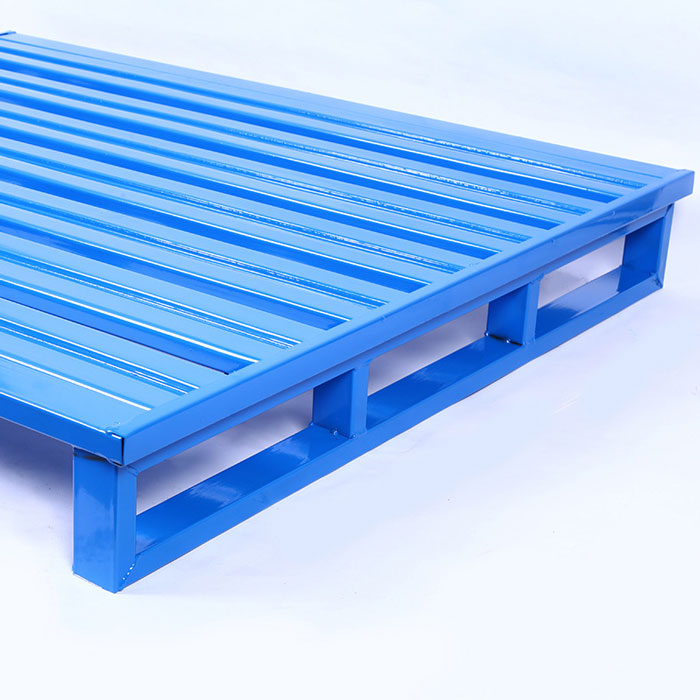

steel pallet

Advantages of Steel Pallet

1. The number of panels can be increased or decreased according to the customer’s request.

2. The panel can be added to the bottom of the pallet according to actual loading products.

3. The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging.

4. The pallet can be used on selective rack, trough type rack, and gravity type rack. Both forklifts and hand pallet truck are applicative.

5. To load scattered goods, pallet collar can be installed to the pallet.

6. Customer’s logo can be added as required.

7. Both sides are processed with Angle wrapping edge, which enhances the surface effect of the pallet and reduces the risk of damage to the packaging.

8. In order to reduce the damage to the pallet caused by frequent forklift operation, rectangular tubes are arranged at both ends of the insertion direction to increase the service life.

9. The design of the corrugated panel is conducive to improve the anti-skid effect and increase the load capacity of the panel but keep the weight light.

10. The 4-way insert design increases space utilization and makes it more convenient on the operation.

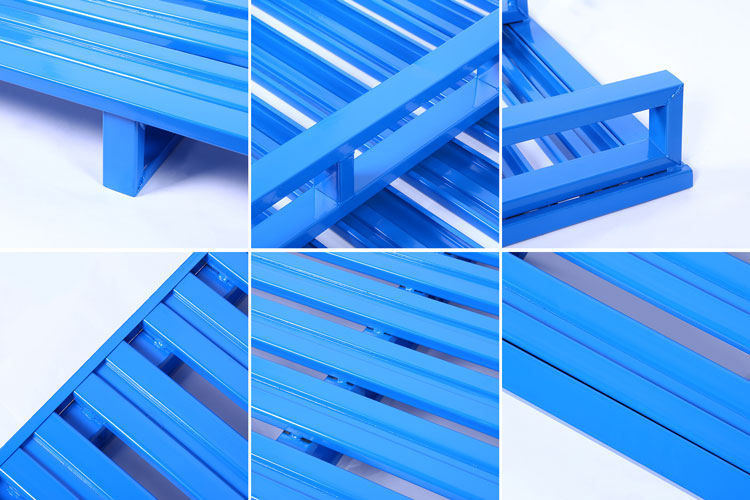

Details of Steel Pallet

Details of steel pallet

Specifications of Steel Pallet

Dimensions(mm)			Weight	Structure	2-way/4-way	Surface	Capacity (t)
A	B	H	KG	Structure	2-way/4-way	Surface	Dynamic	Static
800	1200	157	27.95	Single-Side, Full	4-way	PowderCoating	2	4
1000	1200	157	31.27	Single-Side, Full	4-way	PowderCoating	2	4
1100	1100	157	30.28	Single-Side, Full	4-way	PowderCoating	2	4
800	1200	157	27.46	Single-Side, Full	4-way	ColdGalvanizing	2	4
1000	1200	157	30.27	Single-Side, Full	4-way	ColdGalvanizing	2	4
1100	1100	157	29.78	Single-Side, Full	4-way	ColdGalvanizing	2	4
800	1200	157	22.42	Single-Side, Halfcovering	4-way	PowderCoating	1.5	3
1000	1200	157	24.37	Single-Side, Halfcovering	4-way	PowderCoating	1.5	3
1100	1100	157	22.68	Single-Side, Halfcovering	4-way	PowderCoating	1.5	3
800	1200	157	22.04	Single-Side, Halfcovering	4-way	ColdGalvanizing	1.5	3
1000	1200	157	23.95	Single-Side, Halfcovering	4-way	ColdGalvanizing	1.5	3
1100	1100	157	22.28	Single-Side, Halfcovering	4-way	ColdGalvanizing	1.5	3
800	1200	184	33.55	Single-Side, OneSide Full	4-way	PowderCoating	2	4
1000	1200	184	37.7	Single-Side, OneSide Full	4-way	PowderCoating	2	4
1100	1100	184	36.95	Single-Side, OneSide Full	4-way	PowderCoating	2	4
800	1200	184	32.99	Single-Side, OneSide Full	4-way	ColdGalvanizing	2	4
1000	1200	184	37.07	Single-Side, OneSide Full	4-way	ColdGalvanizing	2	4
1100	1100	184	36.31	Single-Side, OneSide Full	4-way	ColdGalvanizing	2	4
800	1200	184	42.75	Single-Side, Full	4-way	ColdGalvanizing	2	4

Do you offer customized products?

we do custom products and projects.

If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a team whomanufacturer.
I don' have drawing or picture available for the custom products, could you design it for me?

Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
